VLX 100 Pivot Door

VLX 100 Pivot Door in Three Lakes, FL | Sightline Windows & Doors Three Lakes

The VLX 100 Pivot Door is a heavy-duty aluminum pivot door that rotates on a vertical center axis, featuring oversized glass panels that function as a genuine architectural statement. In Three Lakes, we’re seeing more homeowners and builders spec this door for modern new construction, dramatic entry renovations, and pool-house transitions where a standard hinged door simply won’t deliver the visual impact the design demands. At Sightline Windows & Doors Three Lakes, we’re an authorized ViewLux installation partner, which means your door is covered by full manufacturer warranty protection and installed to the exact standards ViewLux requires. We don’t just sell this door - we measure, fit, seal, and finish it for the South Florida climate. Call (786) 808-5792 to schedule your free on-site consultation and see whether the VLX 100 suits your Three Lakes project.

Call (786) 808-5792

Product Overview - VLX 100 Pivot Door

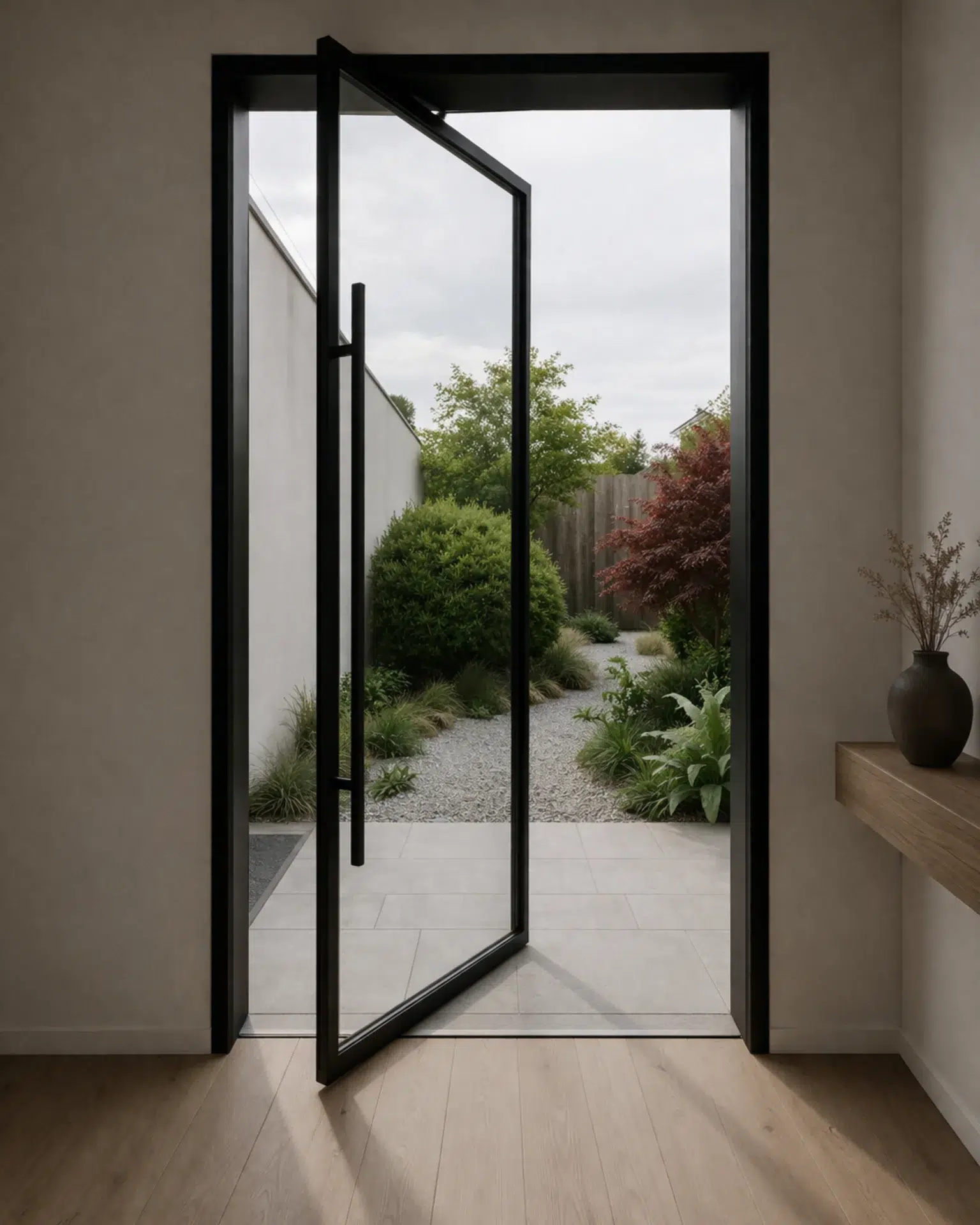

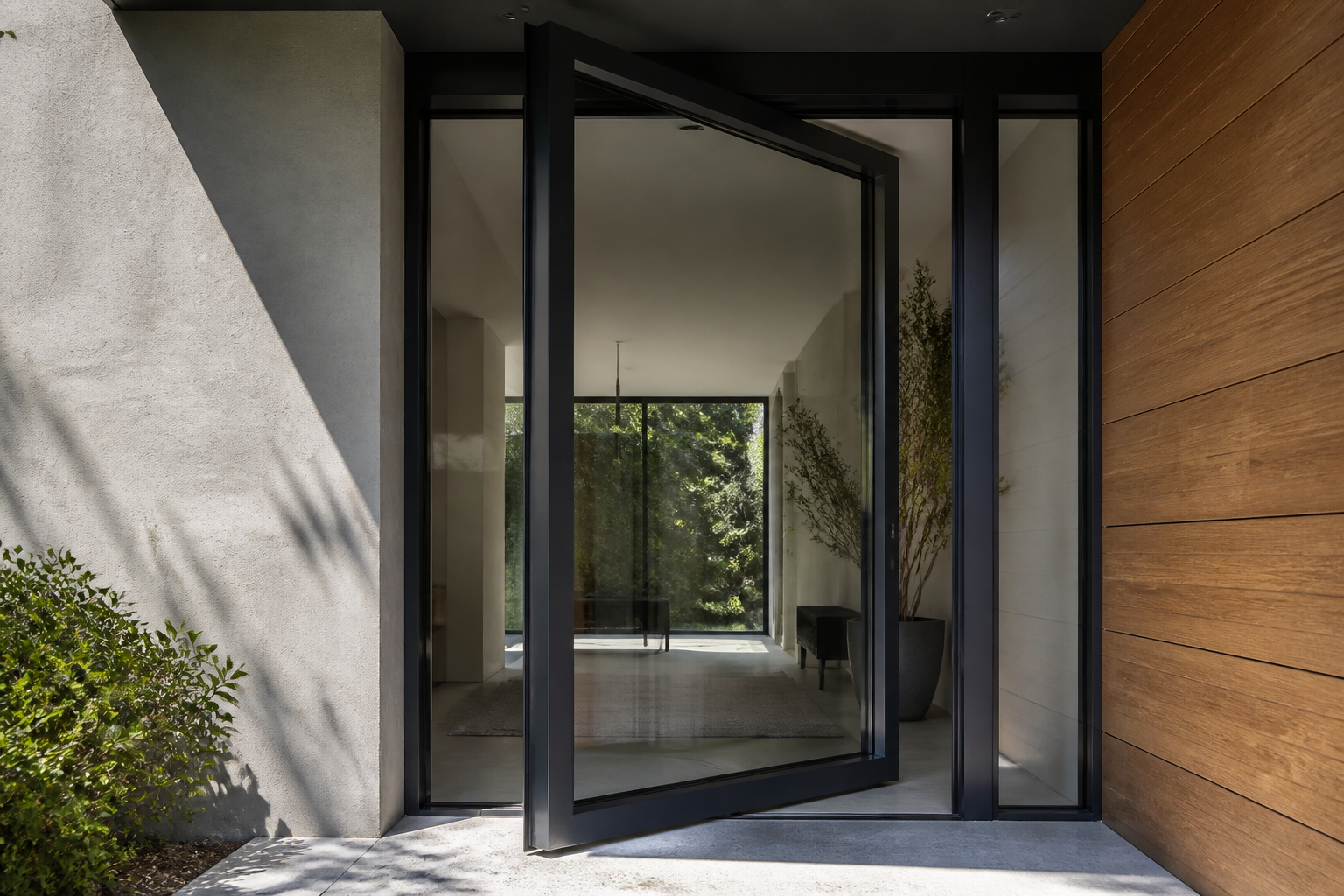

The VLX 100 Pivot Door rethinks how an entry point can operate. Instead of hanging from side-mounted hinges, this door rotates on a precision-engineered vertical axis positioned near the center of the frame. That pivot hardware carries the full weight through the floor and header, which allows for dramatically larger glass panels than any traditional hinged system could support without sagging or binding over time.

In Three Lakes, this matters for a few reasons. Our homes trend toward open indoor-outdoor flow, and the VLX 100’s oversized glass area - up to 60 inches wide by 120 inches tall - creates that connection without the visual interruption of a thick frame or multiple door panels. The 0.098-inch wall thickness aluminum construction resists the salt-laden air that drifts in from Biscayne Bay and the wear of intense UV exposure that fades lesser materials within a few seasons.

Buyers choose this series when they want one element to define a space. The pivot action itself becomes a conversation point. The door moves with a deliberate, weighted smoothness that signals quality engineering. And because ViewLux builds the VLX 100 as a system rather than a collection of components, the hardware, frame, and glass work together rather than fighting each other as the house settles and seasons change.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency
The VLX 100 uses a full thermal break that separates interior and exterior aluminum surfaces, cutting conductive heat transfer. In Three Lakes, where summer cooling loads run high for eight months of the year, this NFRC-rated construction helps keep conditioned air inside and attic heat outside. The thermal break works with your chosen glass package - Low-E coatings are the most popular pairing we see locally - to meet or exceed Florida energy code requirements.

Acoustic Performance
Aluminum pivot doors with thin frames often sacrifice sound control. The VLX 100’s 0.098-inch wall thickness and engineered gasket system dampen exterior noise more effectively than standard residential doors. For Three Lakes properties near major roads or flight paths, pairing the frame with laminated glass adds mass that further reduces sound transmission through the opening.

Airtightness & Weather Seal
Pivot doors live or die by their seal design. The VLX 100 uses continuous compression gaskets at the head, jamb, and sill interfaces, tested to maintain airtightness through repeated cycling. This matters in Three Lakes during pollen season and when Saharan dust events blow through - a tight seal keeps indoor air cleaner without running your filtration system overtime.

Waterproofing
South Florida rain comes hard and fast. The VLX 100 sill system incorporates positive drainage channels and sloped surfaces that move water out rather than letting it pool. We complete every installation with AAMA 812 low-expansion foam sealant at all perimeter joints, creating a secondary moisture barrier behind the visible trim. During our final water test, we spray the door assembly to verify no penetration at the threshold or frame corners.

Wind Resistance
The VLX 100 is wind-load rated for local climate requirements, including the pressure cycling that comes with tropical storm and hurricane conditions. The pivot hardware anchors into structural framing at both floor and header, distributing wind forces through the building envelope rather than concentrating stress at a few hinge points. For Three Lakes homes in higher exposure zones, the laminated impact glass option adds debris resistance without sacrificing the clean sightlines that make this door distinctive.

Security & Hardware
Pivot hardware on the VLX 100 uses concealed multi-point locking that engages at several positions along the frame edge. The heavy-duty aluminum construction resists forced entry better than hollow-core or thin-profile alternatives. We install and adjust all hardware during our final calibration, ensuring the lock points align precisely with their strikes for smooth operation that doesn’t degrade over time.

Color & Glass Options

The six finish options on the VLX 100 cover the full range of Three Lakes architectural styles we’re called to work with.

Premium Black and Anodized Silver dominate the modern and contemporary homes going up near the newer developments - they read as intentional and minimal against white stucco or exposed concrete. Bronze and Champagne soften the industrial edge for transitional homes that mix traditional rooflines with cleaner window and door proportions. Pure White disappears against matching trim, a choice we see often in coastal cottage renovations where the glass itself is meant to be the feature. Teak Wood offers warmth for homes with natural stone or wood soffit details, giving you the look of timber with aluminum’s structural integrity and zero maintenance.

Glass selection depends on placement and privacy needs. Clear glass maximizes views and daylight - ideal for rear elevations facing landscaped areas. Frosted and Obscure options work for side entries, pool baths, or any location where you want light without visibility. Low-E is our default recommendation for Three Lakes; the spectrally selective coating blocks infrared heat while preserving visible light transmission. Tempered glass meets safety code for all door applications and breaks into small granular pieces rather than dangerous shards. Laminated glass adds the impact resistance required in wind-borne debris zones, and the interlayer continues to hold the panel together even if the glass cracks.

Installation by Sightline Windows & Doors Three Lakes in Three Lakes

We install every VLX 100 Pivot Door to ViewLux’s authorized-partner standards and the AAMA 2400/2410 installation protocols. This isn’t optional paperwork - it’s the difference between a door that operates flawlessly for fifteen years and one that drags, leaks, or fails prematurely.

Our process starts with a pre-install inspection of your rough opening. We check plumb, level, and square to within 1/8 inch across the full frame perimeter. Pivot doors have zero tolerance for racked openings; the hardware depends on precise vertical alignment to carry weight properly and maintain smooth rotation. In Three Lakes, we frequently find that existing openings need reframing, especially in older homes where settlement has shifted the original geometry. We address this before the door arrives, not after.

Once the frame is positioned, we shim and anchor to structural members, not just finish trim. The AAMA 812 low-expansion foam sealant goes in next, filling the perimeter gap with material that stays flexible and doesn’t distort the frame as it cures. We cap that with backer rod and sealant at the exterior face for a clean, waterproof joint. Final steps include hardware calibration, multi-point lock adjustment, and a water-spray test that verifies no leakage at the sill or frame corners.

Here’s what Three Lakes homeowners need to understand: improper installation voids the ViewLux manufacturer warranty. If an unqualified installer racks the frame, omits the foam sealant, or fails to flash the sill properly, you’re left with no coverage when problems emerge. At Sightline Windows & Doors Three Lakes, our authorized-partner status means your warranty stays intact and our workmanship backs up the manufacturer’s promise. We’ve also learned that Three Lakes’ combination of high humidity, salt air, and intense sun punishes shortcuts. We don’t take them.

Frequently Asked Questions - VLX 100 Pivot Door

What is the lead time for the VLX 100 Pivot Door?
Lead time typically runs 8 to 12 weeks from final measurement and deposit, depending on glass and finish selection. Laminated impact glass and custom finishes extend toward the longer end. We keep you updated at each production milestone and coordinate delivery with your project’s schedule. Call (786) 808-5792 to check current lead times for your specific configuration.

Does the VLX 100 qualify for energy tax credits?
The VLX 100 with Low-E glass and thermal break construction meets the NFRC performance thresholds that federal energy tax credits require. Exact credit amounts depend on the tax year and your total installation cost. We provide the NFRC labels and product certification documentation your accountant needs to claim any available credits. For current-year details, consult your tax preparer with our paperwork in hand.

What warranty comes with the Pivot Door?
ViewLux backs the VLX 100 with a limited lifetime warranty on the aluminum frame and hardware, plus a 20-year glass seal warranty against fogging or seal failure. Coverage requires authorized-partner installation - which is exactly what Sightline Windows & Doors Three Lakes provides. We register your warranty and handle any claims directly with ViewLux if issues ever arise.

Can I customize the size?
The VLX 100 accommodates openings up to 60 inches wide by 120 inches tall within its standard engineering. Beyond those dimensions, ViewLux requires custom engineering that extends lead time and cost significantly. Most Three Lakes homes find the maximum standard size more than adequate for dramatic effect. We measure your opening and advise whether standard or custom sizing makes sense for your project.

How do I maintain aluminum frames in Three Lakes?
Rinse the frame exterior quarterly with fresh water to remove salt accumulation, wash annually with mild soap and a soft brush, and lubricate the pivot hardware once per year with a silicone-based product. Avoid abrasive cleaners or pressure washers close to the frame. The powder coat finishes resist fading, but salt left sitting accelerates wear at any minor scratch. With this minimal care, your VLX 100 will look and operate like new for decades in Three Lakes conditions.

Get a Quote - VLX 100 Pivot Door in Three Lakes

Ready to see whether the VLX 100 Pivot Door fits your Three Lakes project? Call Sightline Windows & Doors Three Lakes at (786) 808-5792 to schedule your free on-site measurement and consultation. We’ll bring finish samples, discuss glass options for your specific exposure, and give you a written line-item quote with no pressure to decide on the spot. Whether you’re breaking ground this month or planning six months out, we’ll make sure your door arrives on time and goes in right.

Written by the team at Sightline Windows & Doors Three Lakes, serving Three Lakes since 2015.
